Jacking Systems

Four of the most popular system configurations are the ‘H’, ‘U’, ‘T’ and ‘I’ configured jacking systems. Note that multiple screw jacks can be linked together mechanically or electrically. The latter is useful if there is no space for linking drive shafts.

H - Configuration

T - Configuration

U - Configuration

I - Configuration

Components

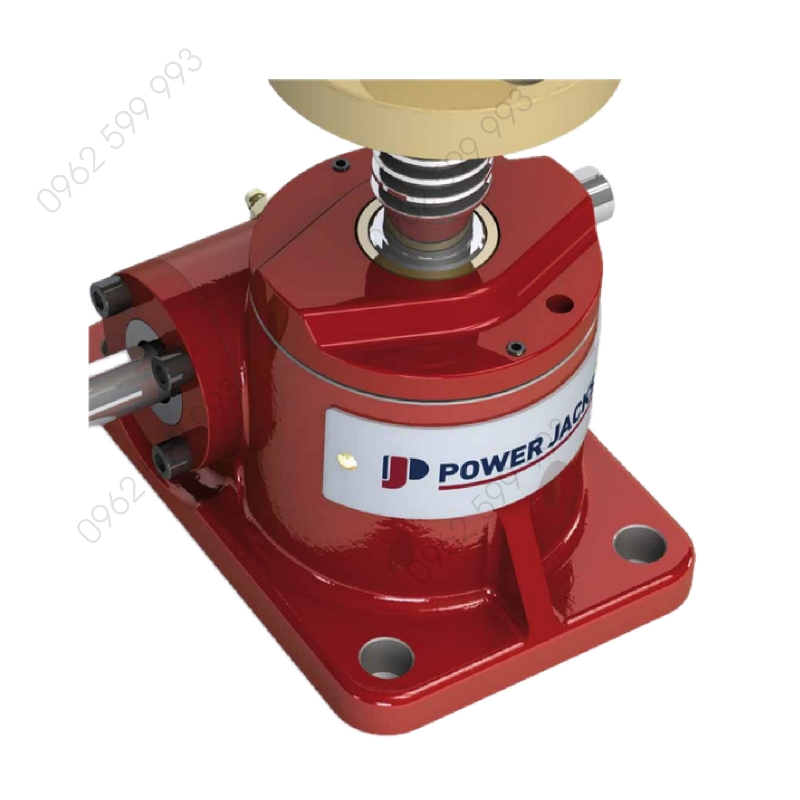

• Screw Jacks
• Bevel Gearboxes
• Motion Control
• Electric Motors
• Drive Components
• Reduction Gearboxes
• Couplings & Drive Shafts
