Bevel Gearboxes Range-U: Series 35, 37, 38, 39, 40 and 42

Key Features

• Subsea Bevel Gearbox Design
• Proven depth ratings up to 3000m subsea (deeper on request)
• Pressure compensated or flooded designs available

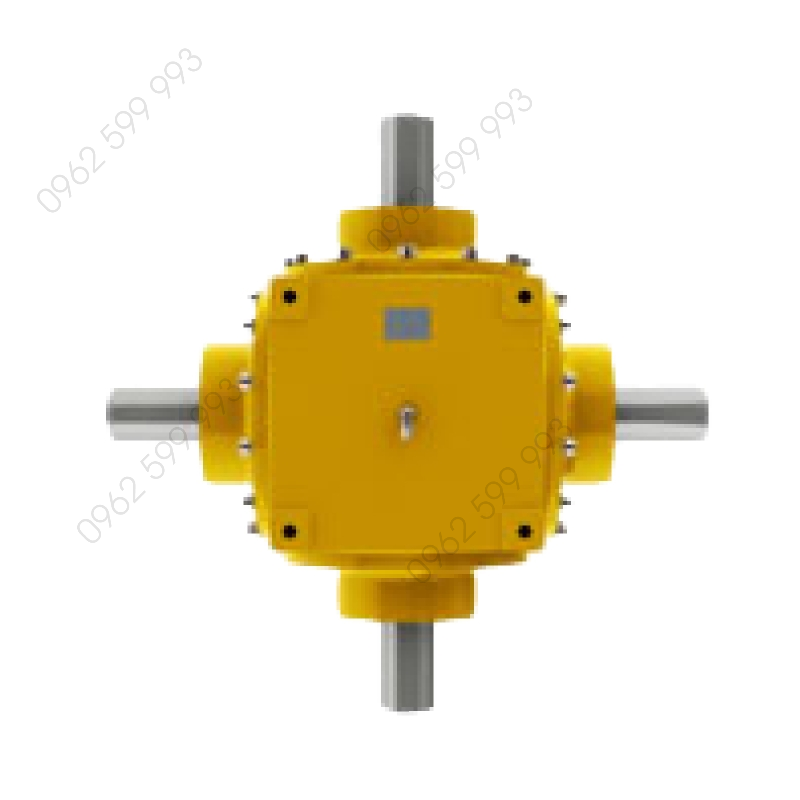

• 2-way, 3-way or 4-way shaft configurations
• Solid Shaft or Hollow shaft designs
• Gear Ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1 as standard
• Special gear ratios available on request e.g. 1.25:1
• Torque Ratings up to 20000 Nm
• Option for reinforced shaft design for up to 300% higher torque transmission
• Full stainless steel designs available- Reinforced sealing
• Full range of anti-corrosion options
• ROV drive interfaces
• Low (-65°C) to High (+250°C) temperature solutions available
• Vibration and shock load resistant designs
• Full range of feedback devices for speed, position and rotation monitoring control
• Special custom designs available to meet your exact requirements

Selecting the Right Gearbox

When selecting a gearbox there are a number of factors which influence the final size of the selected unit. You can view this information in the Bevel Gearbox Selection Guide.

The selection procedure is a 12 step process that uses the following application information to select a bevel gearbox.

• Bevel Gearbox Input Speed (rpm)
• Bevel Gearbox Output Speed (rpm)
• Bevel Gearbox configuration
• Required Output Torque (Nm)
• Operating Hours per day
• Input Power Source Bevel Gearbox application
• Number of starts per hour
• Transmission methods
• Duty cycle per hour (% running time)
• Operating ambient temperature

Configurations

Solid Shaft

Hollow Shaft
